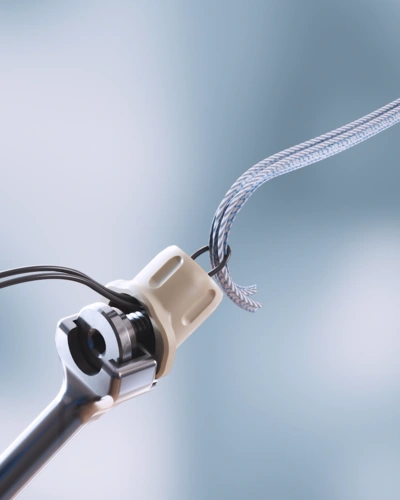

Product Description
Intented use:

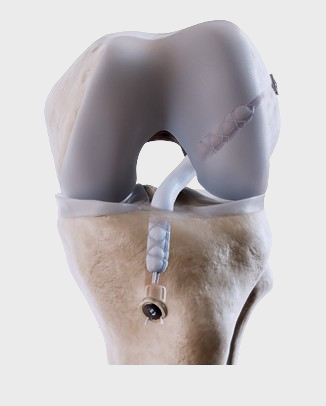

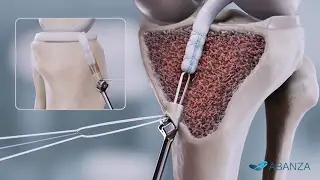

Knee: ACL Repair, ACL Reconstruction, PCL Repair, PCL Reconstruction. QuadLock™ is designed for use with common ACL graft constructs, including quadriceps tendon, quadrupled hamstring (semitendinosus/gracilis), and bone–patellar tendon–bone (BTB).
Suture
Tape
Adjustable loop fixation
FEATURES

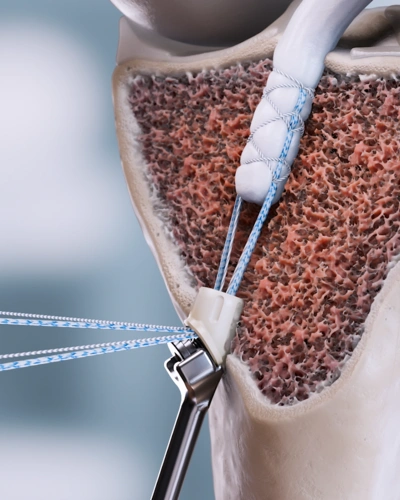

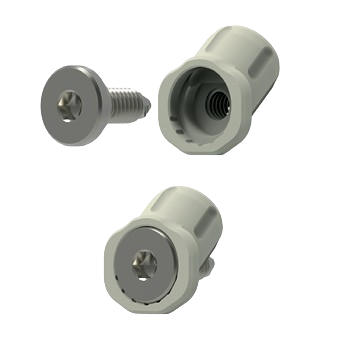

Bi-planer fixation. Not dependent on the patient’s bone quality.
Knotless, tension-adjustable fixation system.
Market-leading control of cyclic displacement (less than 0.5 mm)—a 500%+ improvement compared to the 3–6 mm reported for conventional fixation methods.
Up to 100% greater strength (>1,000 N).

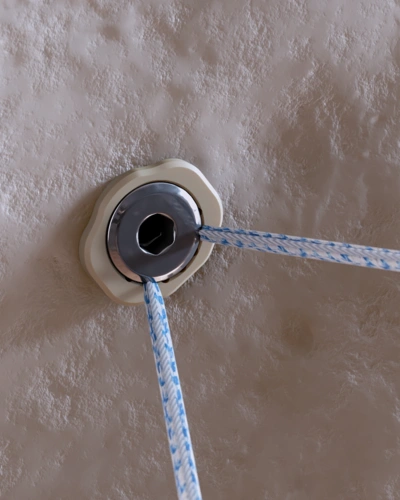

Full-tunnel biologic containment. Seals the bone tunnel, helping prevent synovial fluid egress/leakage.
DUAL™ Fixation: enables independent tensioning and fixation of the graft and internal augmentation.
Designed for maximum suture and tape compression without causing damage.
Biomechanical Performance

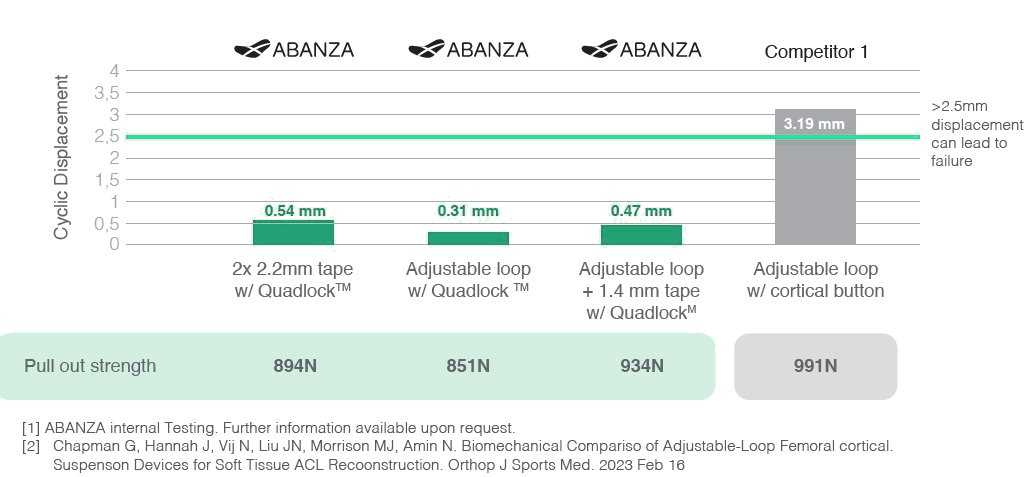

Cyclic displacement is controlled to less than 0.5 mm (under 50-250N loading), establishing a new standard for construct stability.
This performance is paired with a load to-failure resistance exceeding 1000 N in biomechanical testing.
This superior stability is driven by our biplanar fixation architecture, which maximizes construct rigidity, and the internal secure capture of the adjustable loop, which effectively eliminates tension loss during the critical phases of early-stage rehabilitation. The result is a highly reliable
construct that provides predictable, long
term clinical outcomes.

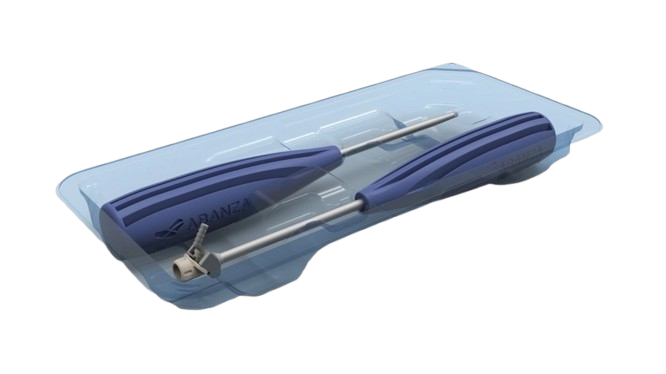

packaging
- Single use inserter with QuadLock™ Fixation System and nitinol retriever.
- Single use screwdriver.
Size Available
|
Reference
|
Description
|
|---|---|
|
AB050900 |
QuadLock™ 9 mm Fixation System |
|
AB051000 |
QuadLock™ 10 mm Fixation System |
|
AB051100 |
QuadLock™ 11 mm Fixation System |
All Peek & Bio Under development
Additional information
Download instructions for use and technical specifications for the QuadLock systems.
